OPTISONIC 3000, DN 25-65 KROHNE-Ultrasonic Flowmeter (VN61065011B0020100000300000000)

OPTISONIC 3000, DN 25-65

KROHNE-Ultrasonic Flowmeter VN61065011B0020100000300000000

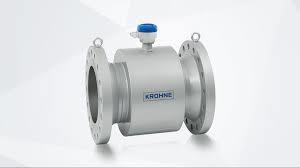

KROHNE OPTISONIC 3400 C ultrasonic flowmeter.

🔹 Product Information

• Model: OPTISONIC 3400 C

• Primary head: OPTISONIC 3000

• Version: Triple beam, 6 sensors

• Meter size: DN 40 (1 ½")

• Overall length: 270 mm (10.63")

🔹 Mechanical & Material Data

• Flanges: DN 40 PN 40

• Flange material: Stainless steel (DIN 1.4404 / AISI 316L)

• Measuring tube: Stainless steel DIN 1.4404

• Sensors (6x): Stainless steel DIN 1.4404

• Housing: Stainless steel DIN 1.4404

• Finish: KROHNE Grey

🔹 Operating Conditions

• Product temperature range: –45 … +140 °C (–49 … +284 °F), depending on pressure and ambient temperature

• Protection class: IP66/67 (NEMA 4/4X/6), IEC/EN 60529

• Construction requirements: Standard

• Calibration: Standard, water – 2 points

🔹 Compliance & Certification

• PED group: 1 – gases

• PED category: II

• CE / NOBO marking: Yes

• QA / QC requirements: Standard

• Operation manual language: English

🔹 Logistics

• Shipment from: Warehouse, The Netherlands

• Country of origin: The Netherlands

• Commodity code (HS code): 90261021

• Internal reference number: VN61065011B0020100000300000000

UFC 400

KROHNE UFC 400 C – Flow Converter

Compact model with local display & diagnostics (NAMUR NE107 compliant)

🔹 General

• Type: UFC 400 C

• Display: Local display

• Diagnostics: acc. NAMUR NE107

• Accuracy: see Technical Data of OPTISONIC 3400 / 4400

🔹 Electrical

• Power supply: 100–230 V AC, 50/60 Hz (range 85–250 V)

• Cable connection: 3 × M20 × 1.5

🔹 Operation

• Operation manual: English (US)

• Programming language: English

🔹 Mechanical / Housing

• Housing: Standard aluminum

• Protection class: IP66/67 (NEMA 4X/6), acc. EN 60529

🔹 Communication & Interfaces

• RS485 Modbus communication

• I/O: RS485 Modbus, active

• With carrier, future I/O module–1 possible

• With carrier, future I/O module–2 possible

Quantity Unit (QU)

• pcs = pieces

• ro = coil/roll

• set = set

• km = kilometer

• mm = millimeter

• m = meter

• l = liter

• h = hour

• kg = kilogram

Price Unit (PU)

(looks like these are multipliers)

• 2 = ×10

• 3 = ×100

• 4 = ×1000

• 5 = ×10000

• VN3545A0660010G88003 → Likely a shipment reference number, batch number, or serial number.

• Shipment Warehouse: The Netherlands → The goods are stored or dispatched from a warehouse in the Netherlands.

• Commodity Code: 90261021 → This is a customs HS (Harmonized System) / CN (Combined Nomenclature) code. Specifically:

  • 9026 → Instruments and apparatus for measuring or checking the flow, level, pressure, or other variables of liquids or gases.

  • 902610 → Instruments for measuring or checking the flow or level of liquids.

  • 90261021 (CN code) → Electronic instruments for measuring the flow or level of liquids.

• Country of Origin: The Netherlands → The goods were manufactured or obtained in the Netherlands.

👉 So, this shipment is electronic flow/level measuring instruments, made in the Netherlands, warehoused in the Netherlands, under commodity code 90261021.
