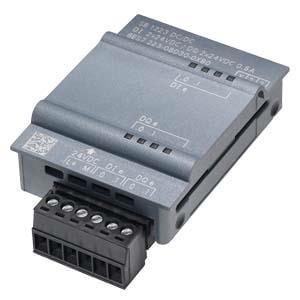

6ES7221-3BD30-0XB0 Signal Board SB 1221, 4 DI 24VDC 200KHz (6ES7221-3BD30-0XB0)

Marka : Siemens
Fiyat : €67,15(KDV Dahil)
TL Fiyat : ₺3.258,85(KDV Dahil)

SIMATIC S7-1200, Digital input SB 1221, 4 DI, 24 V DC 200 kHz, Sourcing input


Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Satıcıya Soru Sor
General information
Product type designation SB 1221, DI 4x24 V DC 200 kHz
Input current
from backplane bus 5 V DC, typ. 40 mA
Power loss
Power loss, typ. 1 W
Digital inputs
Number of digital inputs 4; Current-sourcing
● in groups of 4
Input voltage
● Rated value (DC) 24 V
● for signal "0" (L+ minus 5.0 V DC) ... L+ (1.4 ... 0 mA)
● for signal "1" 0 V ... (L+ minus 10 V DC (10 ... 2.9 mA))
Input current
● for signal "0", max. (permissible quiescent current) 1.4 mA
● for signal "1", min. 2.9 mA
● for signal "1", typ. 7 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable Yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms
for interrupt inputs
— parameterizable Yes
for technological functions
— parameterizable Yes
Cable length
● shielded, max. 50 m; shielded, twisted pair
Interrupts/diagnostics/status information
Diagnostics indication LED
● for status of the inputs Yes
Standards, approvals, certificates
CE mark Yes
CSA approval Yes
UL approval Yes
cULus Yes
FM approval Yes
RCM (formerly C-TICK) Yes
KC approval Yes
Marine approval Yes
Ambient conditions
Free fall
● Fall height, max. 0.3 m; five times, in product package
Ambient temperature during operation
● min. -20 °C
● max. 60 °C
● horizontal installation, min. -20 °C
● horizontal installation, max. 60 °C
● vertical installation, min. -20 °C
● vertical installation, max. 50 °C
Ambient temperature during storage/transportation
● min. -40 °C
● max. 70 °C
Air pressure acc. to IEC 60068-2-13
● Storage/transport, min. 660 hPa
● Storage/transport, max. 1 080 hPa
Relative humidity
● Operation at 25 ℃ without condensation, max. 95 %
Mechanics/material
Enclosure material (front)
● Plastic Yes
Dimensions
Width 38 mm
Height 62 mm
Depth 21 mm
Weights
Weight, approx. 35 g
