| General information |
| Product type designation |

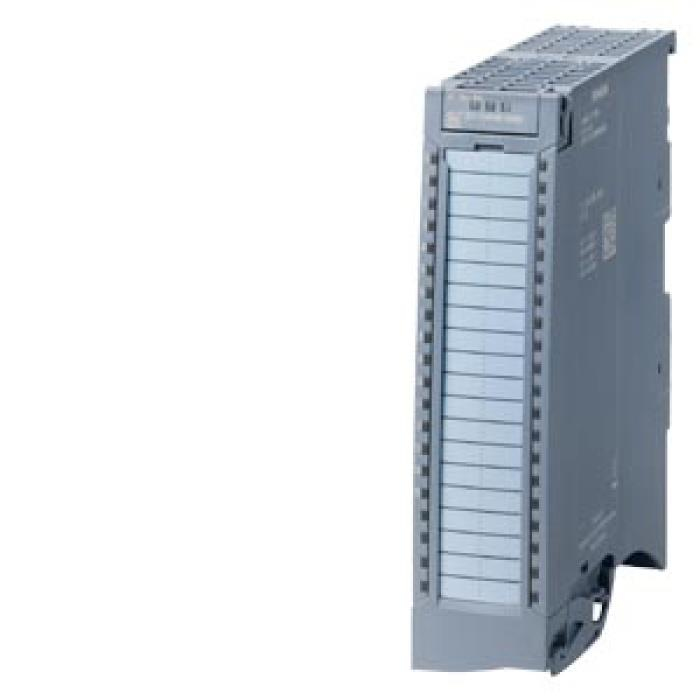

AI 16xI BA |
| HW functional status |
from FS01 |
| Firmware version |
V1.0.0 |
| ● FW update possible |
Yes |
| Product function |
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
| ● Prioritized startup |
No |
| ● Measuring range scalable |
No |
| ● Scalable measured values |
No |
| ● Adjustment of measuring range |
No |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version |
V16 with HSP 312 / V17 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 / - |
| ● PROFIBUS from GSD version/GSD revision |
V1.0 / V5.1 |
| ● PROFINET from GSD version/GSD revision |
V2.3 / - |
| Operating mode |
| ● Oversampling |
No |
| ● MSI |
Yes |
| CiR - Configuration in RUN |
| Reparameterization possible in RUN |
Yes |
| Calibration possible in RUN |
No |
| Power |
| Power consumption from the backplane bus |
0.85 W |
| Power loss |
| Power loss, typ. |
1.2 W |
| Analog inputs |
| Number of analog inputs |
16 |
| ● For current measurement |
16 |
| permissible input current for current input (destruction limit), max. |
40 mA |
| Input ranges (rated values), currents |
| ● 0 to 20 mA |
Yes |
| — Input resistance (0 to 20 mA) |
25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC |
| ● -20 mA to +20 mA |
Yes |
| — Input resistance (-20 mA to +20 mA) |
25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC |
| ● 4 mA to 20 mA |
Yes |
| — Input resistance (4 mA to 20 mA) |
25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC |
| Cable length |
| ● shielded, max. |
800 m |
| Analog value generation for the inputs |
| Measurement principle |
integrating |
| Integration and conversion time/resolution per channel |
| ● Resolution with overrange (bit including sign), max. |
16 bit |
| ● Integration time, parameterizable |
Yes |
| ● Integration time (ms) |
2,5 / 16,67 / 20 / 100 ms |
| ● Basic conversion time, including integration time (ms) |
10 / 24 / 27 / 107 ms |
| ● Interference voltage suppression for interference frequency f1 in Hz |
400 / 60 / 50 / 10 Hz |
| Smoothing of measured values |
| ● parameterizable |
Yes |
| ● Step: None |
Yes |
| ● Step: low |
Yes |
| ● Step: Medium |
Yes |
| ● Step: High |
Yes |
| Encoder |
| Connection of signal encoders |
| ● for voltage measurement |
No |
| ● for current measurement as 2-wire transducer |
Yes; with external supply |
| ● for current measurement as 4-wire transducer |
Yes |
| ● for resistance measurement with two-wire connection |
No |
| ● for resistance measurement with three-wire connection |
No |
| ● for resistance measurement with four-wire connection |
No |
| Errors/accuracies |
| Linearity error (relative to input range), (+/-) |
0.1 % |
| Temperature error (relative to input range), (+/-) |
0.006 %/K |
| Crosstalk between the inputs, max. |
-50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) |
0.1 % |
| Operational error limit in overall temperature range |
| ● Current, relative to input range, (+/-) |
0.5 % |
| Basic error limit (operational limit at 25 °C) |
| ● Current, relative to input range, (+/-) |
0.3 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency |
| ● Series mode interference (peak value of interference < rated value of input range), min. |
40 dB |
| ● Common mode voltage, max. |
4 V |
| ● Common mode interference, min. |
60 dB |
| Interrupts/diagnostics/status information |
| Diagnostics function |
Yes |
| Alarms |
| ● Diagnostic alarm |
Yes |
| ● Limit value alarm |
Yes; two upper and two lower limit values in each case |
| Diagnoses |
| ● Monitoring the supply voltage |
No |
| ● Wire-break |
Yes; Only for 4 ... 20 mA |
| ● Short-circuit |
No |
| ● Group error |
No |
| ● Overflow/underflow |
Yes |
| Diagnostics indication LED |
| ● RUN LED |
Yes; green LED |
| ● ERROR LED |
Yes; red LED |
| ● MAINT LED |
No |
| ● Monitoring of the supply voltage (PWR-LED) |
No |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red LED |
| ● for module diagnostics |
Yes; red LED |
| Potential separation |
| Potential separation channels |
| ● between the channels |
No |
| ● between the channels, in groups of |
16 |
| ● between the channels and backplane bus |
Yes |
| Permissible potential difference |
| between the inputs (UCM) |
8 V DC |
| Between the inputs and MANA (UCM) |
4 V DC |
| Isolation |
| Isolation tested with |
707 V DC (type test) |
| Standards, approvals, certificates |
| Siemens Eco Profile (SEP) |
Siemens EcoTech |
| Ecological footprint |
| ● environmental product declaration |
Yes |
| Global warming potential |
| — global warming potential, (total) [CO2 eq] |
38.6 kg |
| — global warming potential, (during production) [CO2 eq] |
14.4 kg |
| — global warming potential, (during operation) [CO2 eq] |
24.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.44 kg |
| product functions / security / header |
| signed firmware update |
No |
| data integrity |
No |
| Ambient conditions |
| Ambient temperature during operation |
| ● horizontal installation, min. |
-30 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C |
| ● vertical installation, max. |
40 °C |
| Altitude during operation relating to sea level |
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Dimensions |
| Width |
35 mm |
| Height |
147 mm |
| Depth |
129 mm |
| Weights |
| Weight, approx. |
250 g |
