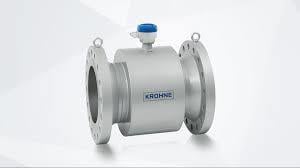

OPTISONIC 3000, DN 25-65 KROHNE-Ultrasonic Flowmeter (VN61075011B0020100000300000000)

OPTISONIC 3000, DN 25-65

KROHNE-Ultrasonic Flowmeter VN61075011B0020100000300000000

KROHNE OPTISONIC 3400 C ultrasonic gas flowmeter, configured as:

• Primary head: OPTISONIC 3000 (triple beam, 6 sensors)

• Meter size: DN 50 (2")

• Flanges: DN 50, PN 40 (stainless steel, DIN 1.4404 / AISI 316L)

• Overall length: 300 mm (11.81")

• Materials: all wetted and housing parts in stainless steel DIN 1.4404

• Temperature range: -45 to +140 °C (depending on pressure & ambient)

• Calibration: Standard, water – 2 points

• Finish: KROHNE grey

• Protection class: IP66/67 (NEMA 4/4X/6), IEC/EN 60529

• Compliance: PED group 1 gases, Category II, CE / NOBO marking

• QA/QC: Standard

• Manual: English

• Shipment: from Netherlands warehouse

• Commodity code: 90261021

• Origin: Netherlands

• Internal reference no.: VN61075011B0020100000300000000

KROHNE Flow Converter – UFC 400 C (Compact Model)

General

• Type: UFC 400 C (Compact model with local display)

• Application: For OPTISONIC 3400 / 4400 flowmeters

• Diagnostics: acc. NAMUR NE107

Accuracy

• See Technical Data of OPTISONIC 3400 or 4400

Power Supply

• Voltage: 100–230 V AC, 50/60 Hz (range: 85–250 V)

Electrical Connection

• Cable entries: 3 × M20 × 1.5

Operation / Programming

• Operation manual: English (US)

• Programming language: English

Mechanical

• Converter housing: Standard, aluminum

• Protection class: IP66/67 (NEMA 4X/6) acc. EN 60529

Communication / I/O

• Communication: RS485 Modbus

• I/O: RS485 Modbus, active

Quantity Units (QU)

• pcs = pieces

• ro = coil

• set = set

• km = kilometer

• mm = millimeter

• m = meter

• l = liter

• h = hour

• kg = kilogram

Price Units (PU)

(Numeric codes mapped to multipliers)

• 2 = 10

• 3 = 100

• 4 = 1000

• 5 = 10000

• Modules / Compatibility Notes

  • With carrier, future I/O module-1 possible

  • With carrier, future I/O module-2 possible

  → This usually means the unit is shipped with a carrier (a mounting or connection base) that allows for additional I/O modules (module 1 and 2) to be added later.

• Serial / Identification Code

  • VN3545A0660010G88003
    → Likely a serial number or part number for the specific product.

• Logistics / Shipping Info

  • Shipment Warehouse: The Netherlands

  • Commodity Code (HS / Tariff Code): 90261021
    → This code corresponds to "Instruments and apparatus for measuring or checking the flow or level of liquids."

  • Country of Origin: The Netherlands
