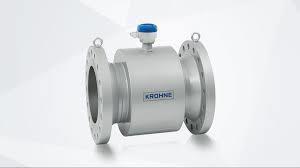

OPTISONIC 3000, DN 80-300 KROHNE-Ultrasonic Flowmeter (VN624B301130000100000300000000)

OPTISONIC 3000, DN 80-300 KROHNE-Ultrasonic Flowmeter

VN624B301130000100000300000000

🔹 General Information

• Model: OPTISONIC 3400 C

• Primary head: OS 3000

• Version: Triple beam with 6 sensors

• Meter size: DN 100 | 4"

• Flange size/rating: DN 100 PN 16

• Overall dimension: 350 mm | 13.78"

🔹 Materials & Construction

• Measuring tube: Carbon steel

• Flange: Carbon steel (slip-on version)

• Sensors (6x): Stainless steel DIN 1.4404

• Housing: Steel

• Finish: KROHNE Grey

🔹 Operating Conditions

• Product temperature: –10…+140 °C | +14…+284 °F
  (depending on pressure and ambient temperature)

• Calibration: Standard, water – 2 points

• Construction requirement: Standard

• QA / QC: Standard

• Operation manual: English

🔹 Certifications & Protection

• Protection class: IP66/67 (NEMA 4/4X/6) acc. IEC / EN 60529

• PED classification: Group 1 – gases, Category II

• CE marking: Yes

🔹 Logistics & Identification

• Tag / Serial: VN624B301130000100000300000000

• Shipment from: Warehouse, The Netherlands

• Commodity Code: 90261021

• Country of Origin: The Netherlands

KROHNE Flow Converter – UFC 400 C

Type: Compact model with local display

Key Features:

• Integrated diagnostics according to NAMUR NE107

• Accuracy: see technical data of OPTISONIC 3400 or OPTISONIC 4400

• Compatible with ultrasonic flowmeters

Power Supply:

• 100–230 V AC, 50/60 Hz

• Wide range: 85–250 V

Connections:

• Cable entry: 3 × M20 × 1.5

Quantity Units (QU)

• pcs = pieces

• ro = coil (roll)

• set = set

• km = kilometer

• mm = millimeter

• m = meter

• l = liter

• h = hour

• kg = kilogram

Price Units (PU)

• 2 = 10

• 3 = 100

• 4 = 1000

• 5 = 10000

Operation Manual: English (US)
Programming Language: English

Converter Housing: Standard, aluminum
Protection Class: IP66/67 (NEMA 4X/6), according to EN 60529

Communication Interface: RS485 Modbus

• I/O RS485 Modbus, active

• With carrier, future I/O module-1 possible

• With carrier, future I/O module-2 possible

Part Number: VN3545A0660010G88003
Shipment From: Warehouse, The Netherlands
Commodity Code (HS): 90261021
Country of Origin: The Netherlands
