| General information |
| Product type designation |

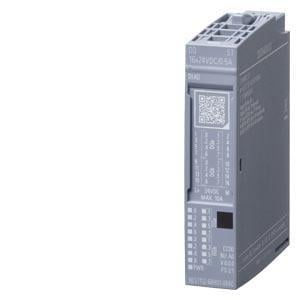

DQ 8x24VDC/0.5A ST |
| HW functional status |
from FS21 |
| Firmware version |
V0.0 |
| ● FW update possible |
No |
| usable BaseUnits |
BU type A0 |
| Color code for module-specific color identification plate |
CC02 |
| Product function |
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version |
STEP 7 TIA V14 with HSP0222 / integrated as of TIA V15 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 with HSP0230 V7.0 / integrated as of V5.6 SP1 |
| ● PCS 7 configurable/integrated from version |
V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision |
One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
| Operating mode |
| ● DQ |
Yes |
| ● DQ with energy-saving function |
No |
| ● PWM |
No |
| ● Oversampling |
No |
| ● MSO |
No |
| Supply voltage |
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| Input current |
| Current consumption, max. |
20 mA; without load |
| output voltage / header |
| Rated value (DC) |
24 V |
| Power loss |
| Power loss, typ. |
1 W |
| Address area |
| Address space per module |
| ● Address space per module, max. |
1 byte; + 1 byte for QI information |
| Hardware configuration |
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
| Selection of BaseUnit for connection variants |
| ● 1-wire connection |
BU type A0 |
| ● 2-wire connection |
BU type A0 |
| ● 3-wire connection |
BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection |
BU type A0 + Potential distributor module |
| Digital outputs |
| Type of digital output |
Source output (PNP, current-sourcing) |
| Number of digital outputs |
8 |
| Current-sinking |
No |
| Current-sourcing |
Yes |
| Digital outputs, parameterizable |
Yes |
| output type acc. to IEC 61131, type 0.5 |
Yes |
| Short-circuit protection |
Yes; Electronic |
| ● Response threshold, typ. |
1 A; 0.7 to 1.3 A |
| Open-circuit detection |
Yes |
| Limitation of inductive shutdown voltage to |
Typ. L+ (-50 V) |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
| ● with resistive load, max. |
0.5 A |
| ● with inductive load, max. |
0.5 A |
| ● on lamp load, max. |
5 W |
| Load resistance range |
| ● lower limit |
48 Ω |
| ● upper limit |
12 kΩ |
| Output current |
| ● for signal "1" rated value |
0.5 A |
| ● for signal "1" permissible range, max. |
0.5 A |
| ● for signal "0" residual current, max. |
0.1 mA |
| Output delay with resistive load |
| ● "0" to "1", max. |
50 µs; at rated load |
| ● "1" to "0", max. |
100 µs; at rated load |
| Parallel switching of two outputs |
| ● for uprating |
No |
| ● for redundant control of a load |
Yes |
| Switching frequency |
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
0.1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads" |
| ● on lamp load, max. |
10 Hz |
| Total current of the outputs |
| ● Current per channel, max. |
0.5 A |
| ● Current per module, max. |
4 A |
| Total current of the outputs (per module) |
| horizontal installation |
| — up to 60 °C, max. |
4 A |
| vertical installation |
| — up to 50 °C, max. |
4 A |
| Cable length |
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
| Interrupts/diagnostics/status information |
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
| Alarms |
| ● Diagnostic alarm |
Yes |
| Diagnoses |
| ● Monitoring the supply voltage |
Yes |
| ● Wire-break |
Yes; Module-wise |
| ● Short-circuit to M |
Yes; Module-wise |
| ● Short-circuit to L+ |
Yes; Module-wise |
| ● Group error |
Yes |
| Diagnostics indication LED |
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green PWR LED |
| ● for channel diagnostics |
No |
| ● for module diagnostics |
Yes; green PWR LED |
| Potential separation |
| Potential separation channels |
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● Between the channels and load voltage L+ |
No |
| Isolation |
| Isolation tested with |
707 V DC (type test) |
| Standards, approvals, certificates |
| Suitable for safety functions |
No |
| Suitable for safety-related tripping of standard modules |
No |
| Ecological footprint |
| ● environmental product declaration |
Yes |
| Global warming potential |
| — global warming potential, (total) [CO2 eq] |
20.4 kg |
| — global warming potential, (during production) [CO2 eq] |
3.16 kg |
| — global warming potential, (during operation) [CO2 eq] |
17.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.221 kg |
| Ambient conditions |
| Ambient temperature during operation |
| ● horizontal installation, min. |
-30 °C; < 0 °C as of FS02 |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; < 0 °C as of FS02 |
| ● vertical installation, max. |
50 °C |
| Altitude during operation relating to sea level |
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Dimensions |
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
| Weights |
| Weight, approx. |
30 g |
