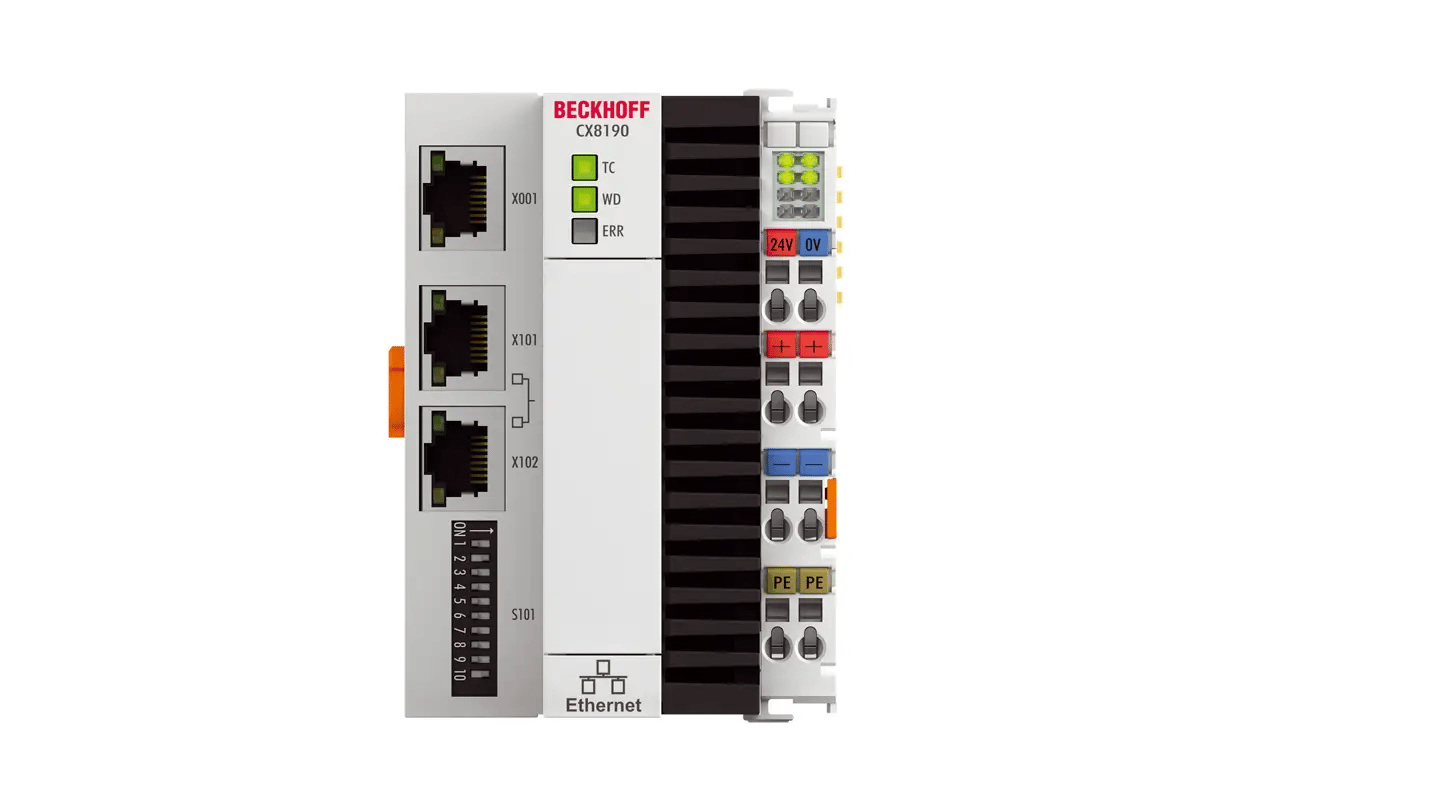

Beckhoff CX8190 Embedded PC | Arm Cortex-A9 | 2-Port Ethernet Switch
CX8190, Arm® Cortex®-A9 işlemci ve 2-port Ethernet switch ile endüstriyel otomasyon sistemleri için yüksek performanslı bir Embedded PC’dir.
Beckhoff CX8190 Embedded PC, Arm® Cortex®-A9 tek çekirdekli işlemci ve iki Ethernet portu ile endüstriyel otomasyon sistemlerinde yüksek veri aktarım kapasitesi sağlar. Bir port iki RJ45 soketi üzerinden switch edilmiş olup, gerçek zamanlı Ethernet, ADS UDP/TCP ve EAP (EtherCAT Automation Protocol) protokollerini destekler.
K-bus veya E-bus terminalleri ile sistem başlatıldığında otomatik olarak tanınır ve TwinCAT 3 yazılımı ile programlanabilir. CX8190, OPC UA, MQTT, Modbus TCP ve Modbus RTU gibi protokollerle genişletilebilir ve TwinCAT 3 platformu üzerinde tam uyumlu çalışır.
| Technical data |
CX8190 |
| Processor |
Arm® Cortex®-A9, 800 MHz |
| Number of cores |
1 |
| Flash memory |
slot for microSD card, 512 MB included (optionally expandable) |
| Main memory |
512 MB DDR3 RAM (not expandable) |
| 1-second UPS |
integrated (1 MB on microSD card) |
| Interfaces |
1 x RJ45 10/100 Mbit/s, 1 x bus interface |
| Cooling |
passive |
| Bus interface |
2 x RJ45 (switched) |
| Data transfer rates |
100 Mbit/s |
| Diagnostics LED |
1 x TC status, 1 x WD, 1 x error |
| Clock |
internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Operating system |
Windows Embedded Compact 7 |
| Control software |
TwinCAT 3 runtime (XAR) |
| I/O connection |
E-bus or K-bus, automatic recognition |
| Power supply |
24 V DC (-15%/+20%) |
| UPS OCT-capable |
no |
| Current supply E-bus/K-bus |
2 A |
| Max. power consumption |
4 W |
| Max. power consumption (with loading UPS) |
9 W |
| Max. power consumption E-bus/K-bus |
10 W (5 V/max. 2 A) |
| Dimensions (W x H x D) |
71 mm x 100 mm x 73 mm |
| Weight |
approx. 230 g |
| Operating temperature |
-25…+60°C |
| Storage temperature |
-40…+85°C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating |
IP20 |
| Approvals/markings |
CE, UL |
| TwinCAT 3 platform level |
Economy (20); please see here for an overview of all the TwinCAT 3 platform level |
