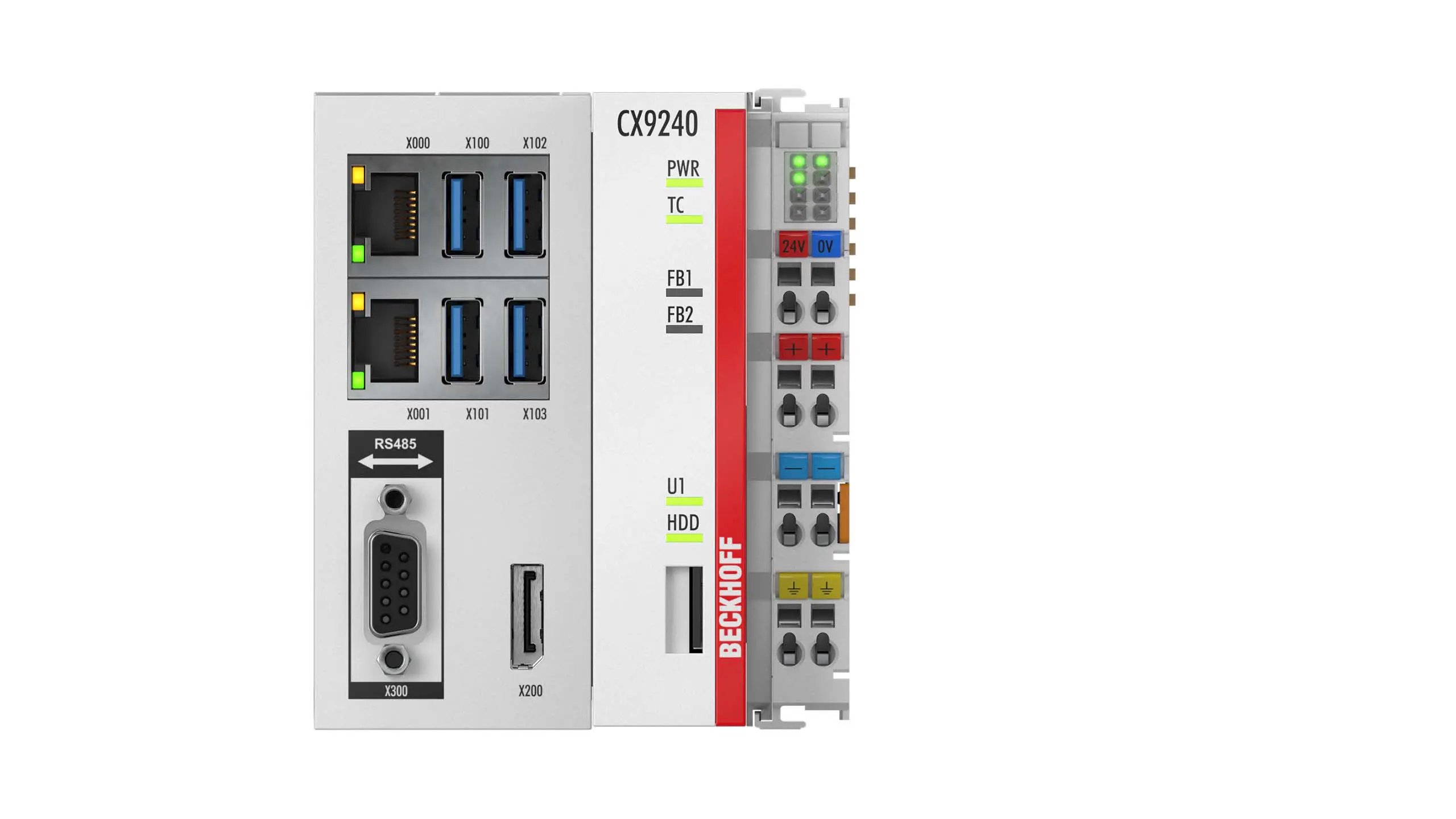

Beckhoff CX9240 Embedded PC | Arm Cortex-A53 Quad-Core 1.2 GHz | DIN Rail Ethernet
CX9240, dört çekirdekli Arm® Cortex®-A53 1.2 GHz CPU, DIN ray montajlı kompakt tasarım ve TwinCAT destekli Ethernet kontrol özellikleri ile endüstriyel otomasyon için güçlü bir Embedded PC’dir.
Beckhoff CX9240 Embedded PC, dört çekirdekli Arm® Cortex®-A53 1.2 GHz CPU ve 2 GB LPDDR4 RAM ile yüksek performanslı bir DIN ray montajlı Ethernet kontrol sistemidir. İki bağımsız 1 Gbit Ethernet portu, dört USB 3.0 portu, DisplayPort ve multi-option arayüz ile geniş bağlantı seçenekleri sunar.
K-bus veya E-bus terminalleri otomatik tanınır ve sisteme entegre edilir. TwinCAT yazılımı ile CX9240, PLC ve hareket kontrol sistemlerine dönüştürülebilir ve Beckhoff RT Linux® işletim sistemi üzerinde çalışır. Opsiyonel olarak seri veya alan arayüzleri ile sipariş edilebilir.
Yerleşik kapasitif 1 saniyelik UPS ve elektriksel izolasyonlu 24 V DC güç kaynağı ile güvenilir enerji sağlar. Çalışma sıcaklığı -25…+60 °C aralığında olup zor iklim koşullarında dahi yüksek performans sunar.
| Technical data |
CX9240 |
| Processor |
Arm® Cortex®-A53, 1.2 GHz |
| Number of cores |
4 |
| Flash memory |
slot for microSD card, card not included (requires a microSD card with a minimum capacity of 16 GB) |
| Main memory |
2 GB LPDDR4 RAM (not expandable) |
| 1-second UPS |
integrated (1 MB on microSD card) |
| Interfaces |
2 x RJ45 10/100/1000 Mbit/s, 1 x DisplayPort, 4 x USB 3.0, 1 x optional interface |
| Cooling |
passive |
| Diagnostics LED |
1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock |
internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days) |
| Operating system |
Beckhoff RT Linux® |
| Control software |
TwinCAT 3 runtime (XAR) from TwinCAT 3.1 Build 4026 (XAE) |
| I/O connection |
E-bus or K-bus, automatic recognition |
| Power supply |
24 V DC (-15%/+20%), electrically isolated |
| UPS OCT-capable |
no |
| Current supply E-bus/K-bus |
2 A |
| Max. power consumption |
7 W |
| Max. power consumption (with loading UPS) |
12 W |
| Max. power consumption E-bus/K-bus |
10 W (5 V/max. 2 A) |
| Weight |
approx. 650 g |
| Dimensions (W x H x D) |
84 mm x 100 mm x 91 mm |
| Relative humidity |
95%, no condensation |
| Operating temperature |
-25…+60°C |
| Storage temperature |
-40…+85°C |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating |
IP20 |
| Approvals/markings |
CE, UL |
| TwinCAT 3 platform level |
Economy Plus (30); please see here for an overview of all the TwinCAT 3 platform level |
