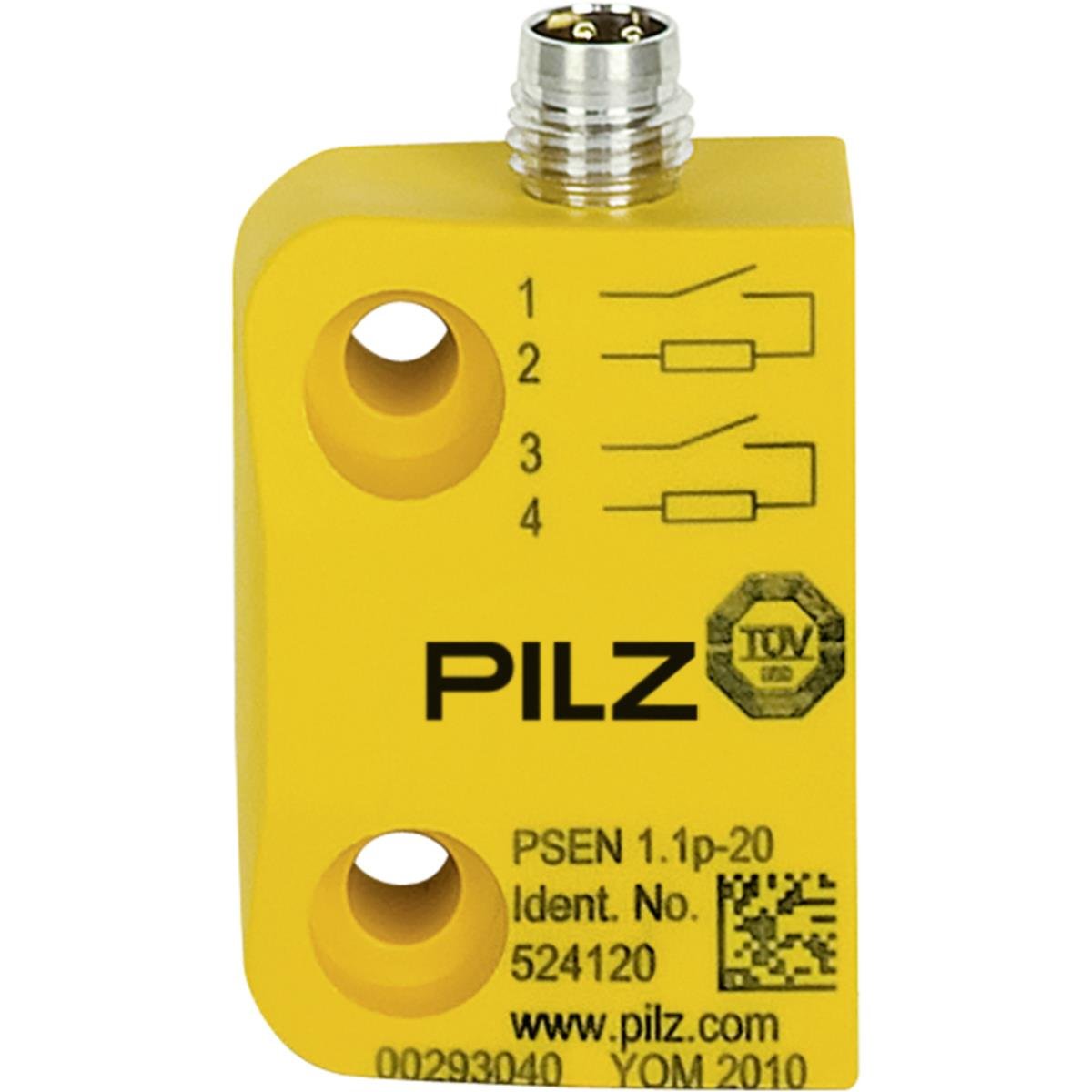

Pilz - PSEN 1.1p-20/8mm/ 1 Switch - 524120
Pilz - PSEN 1.1p-20/8mm/ 1 Switch - 524120

Pilz - PSEN 1.1p-20/8mm/ 1 Switch - 524120 (524120)

Marka : Pilz
Fiyat : €95,00(KDV Dahil)
TL Fiyat : ₺4.608,74(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Satıcıya Soru Sor

PSEN ma1.3a-20/1switch

Product ID: 526120

GTIN: 4046548049794

Magnetic safety switch 3 n/o, round M12 design, IP67, 5 m cable, PU = 1 piece without actuator, certification (TÜV, EAC, UL,ECOLAB approved).





General data



Approval CE
UKCA
cULus Listed
ECOLAB
EAC (Eurasian)
TÜV
Sensor principle magnetisch
Coding level to ISO 14119 gering
Classification to EN 60947-5-3 PDDB
Suitable for series connection nein
unit type Sensor













Supply voltage (V) 24  V
Type of supply voltage U1 DC
Switching voltage 24





Ambient temperature -25 - 70  °C
Max. ambient temp. at Hmax
Max. ambient temp. at 2000 m +70 °C
Perm. operating height ASL 4000 m
EMC to standard ... EN 60947-5-3
Vibration to standard ... EN 60947-5-2
Acc. shock to standard1 30g
Pollution degree clear.&creep. 3
Protection type, housing IP65





Type 1 actuator PSEN ma1.3-08
Sensor can be flush-mounted Ja, Montagehinweis beachten
Connection type 5m Kabel
Cable lines LiY11Y 6 x 0,25 mm2
Housing material upper part PBT
Depth dimension 59.1  mm
Net weight 185  g
Gross weight 195  g
